Nombre del producto:Jewelry Repair Desktop Laser Spot Welding Machine KL-100JW
Model::KL-100JW KL-150JW KL-200JW
Laser Type:Nd:YAG Laser
Laser power:100w/150w/200w (Customizable)
Laser Wavelength::1064nm
Welding Depth::2mm (As Per Exact Material)
Spot Adjustable Area::0.1-3mm
Position Method::Red Light,CCD Monitor, Microscope (Optional)
Consulta

Descripción del productod

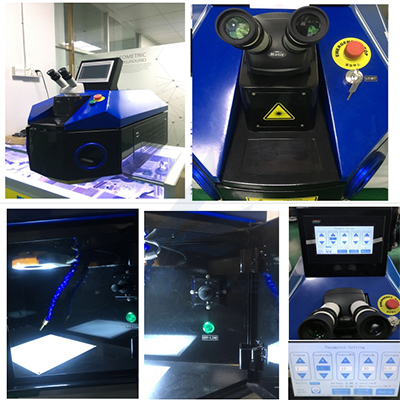

Jewelry Repair Desktop Laser Spot Welding Machine KL-100JW


Product Introduction

Mainly used for filling holes, spot welding and repairing of gold and silver jewelry, suitable for multiple metals and alloy materials such as gold, silver, platinum, stainless steel, titanium, etc., and can also be used for artificial teeth repairing and small precision devices such as battery nickel Welding of belts, integrated circuit leads, watch hairsprings, picture tubes, electron gun assembly and other fields.


Advantage Features:

● Adopt imported ceramic concentrating cavity with fine solder joints and good uniformity. Good concentrating, high photoelectric conversion rate, can effectively guarantee the stability of laser intensity

● With a manual rocker to adjust the spot size, easy to use.

 ● Laser power supply independently developed and designed with higher single point pulse energy. Fast processing speed, long-term output without attenuation, and high efficiency. The wiring is simple and reasonable, and the anti-interference energy is strong.

 ● Adopt Audi Brand microscope, 10X magnification, HD line, easy to observe, more convenient welding operation, better processing effect.

● Use the digital control system, capacitive touch screen, more sensitive than traditional screen, user-friendly parameter interface, intuitive display, easy to operate.

 ● The cabinet design is more Humanize, long-term work with less fatigue


Technique Parameter:

 Model: KL-100JW  KL-150JW  KL-200JW
 Laser Type: Nd:YAG Laser
Laser Wavelength:1064nm
Laser Power: 100w/150w/200w (Customizable)
Max Puls Energy: 0.1-0.6mm
Welding Depth:2mm (As Per Exact Material)
Laser Output Focus Length80/100/120mm
Puls Frequncy:   ≤30Hz
Puls Width: ≤15ms
Spot Adjustable Area: 0.1-3mm
Position Method:Red Light,CCD Monitor, Microscope (Optional)
Position Precision: 0.2mm
Operate Table DSP/PLC
Auxiliary Gas: Argon (1 way)
Cooling Type:    High Force Water Cooling
Power Supply :  AC380V士5%50Hz/60Hz
Power Consumption: 5.5KW


Application:

It is widely used in precision casting welding of small hardware composed of various metal materials, such as: jewelry, dentures, clocks and watches, medical treatment, instrumentation, electronics, mechanical mold processing, automotive and other industries. It is especially suitable for filling holes in gold and silver jewelry. Welding of sand holes, repair seams and claw feet of inlaid parts.


More Video display and details Technique Please contact  Cell/Whatsapp/Skype:+8618028969996 Email: info@kilolaser.com Web: www.kilolaser.com
