| Nombre del producto: | Mould Repair Laser Welding Machine KL-200MLD |
|---|---|
| Model:: | KL-200MLD |
| Laser Type: | Nd:YAG Laser |
| Laer power: | Nd:YAG Laser |
| Max Single Puls Energy:: | 90J |
| Laser Output Focus Length:: | 80/100/120mm |
| Consulta |
Descripción del productod

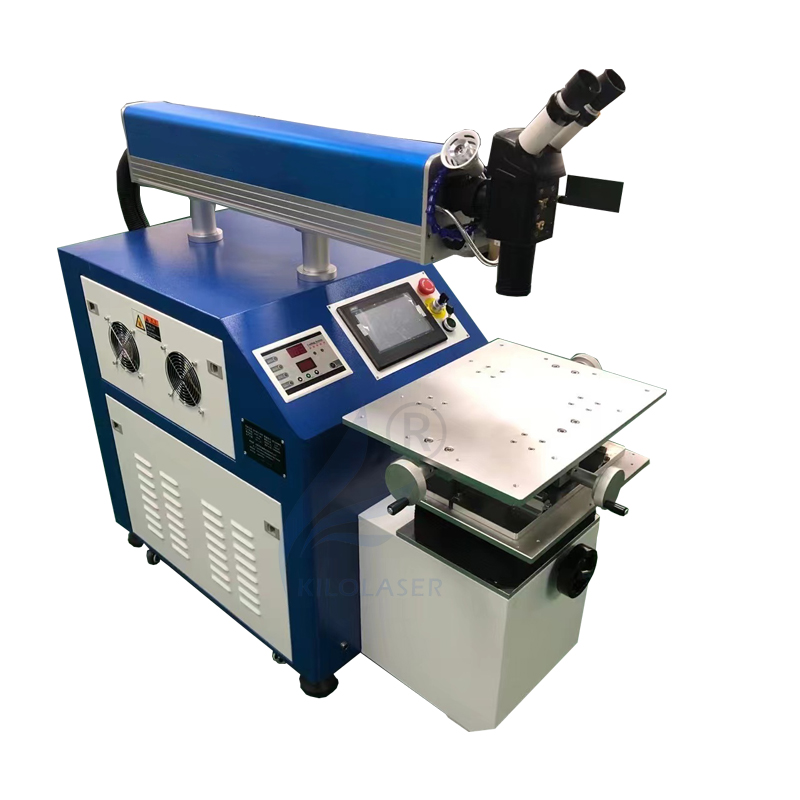

Mould Repair Laser Welding Machine KL-200MLD
Advantage Features
●The optical system Integrat forming, durable and not easy to polarize.
●Optical components are customized independently with high photoelectric conversion rate.
●Supporting optical path moving forward and backward, worktable with automatic lifting function
●The manual translation table is carefully adjusted, smoothly and with minimal accuracy error.
Technique Parameters:
| Model: | KL-200MLD |
| Max Single Puls Energy: | 90J |
| Laser Type: | Nd:YAG Laser |
| Laser Power | 200w 300w 400w optional |
| Wavelength: | 1064nm |
| Laser Power: | 100w/150w/200w (Customizable) |
| Max Puls Energy: | 0.1-0.8mm |
| Welding Depth: | 2mm (As Per Exact Material) |
| Laser Output Focus Length: | 80/100/120mm |
| Puls Frequncy: | ≤50Hz |
| Puls Width： | ≤20ms |
| Spot Adjustable Area： | 0.1-3mm |
| Energy volatility： | ＜土8％ |
| Position Method： | Red Light,CCD Monitor,Microscope (Optional) |
| Position Precision： | 0.2mm |
| Operate Table | DSP/PLC |
| Auxiliary Gas： | Argon (1 way) |
| Cooling Type: | High Force Water Cooling |
| Power Supply ： | AC380V士5％50Hz／60Hz |
| Power Consumption: | 6KW(As per the exact operation) |
Usage Application
This laser welding Machine mainly aims at laser repair and welding of cracks, grinding edges and wear seals in precision injection moulding, die casting die parts, stamping dies and hard materials made of stainless steel. It is widely used in precision mechanical moulds, communication devices, data lines, crafts, expiration, electronic components, chains, jewelry and other industries.
More Video and Technique details Please contact Cell/Whatsapp/Skype:+8618028969996 Email: info@kilolaser.com
