Nombre del producto:	UV Laser Marking Machine For Glass ABS Plastic Nonmetal Material
Laser wavelength (nm):	355
Laser power (W):	3W/5W/8W
Pulse width (ns):	13-80
Power stability (rms):	± 2
Repetition frequency (KHz):	1-200
Beam diameter (mm):	0.6
Consulta

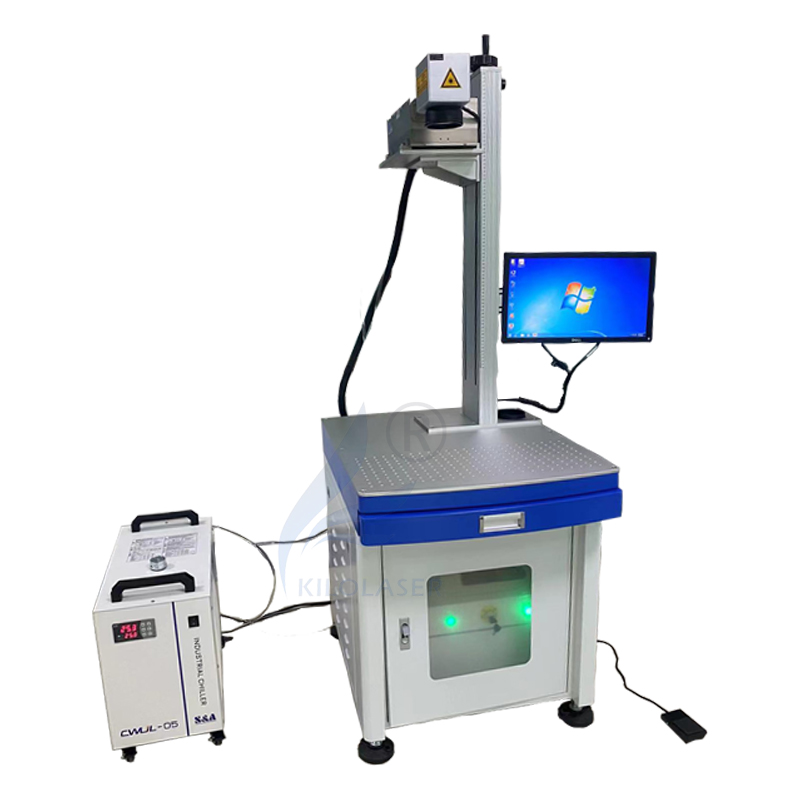

UV Laser Marking Machine For Glass ABS Plastic Nonmetal Material

Advantages:

Ⅰ. Introduce all air-cooled solid-state laser devices, adopt precise temperature control PID algorithm, and have good stability.

Ⅱ.More fine spot quality, small heat affected area.

Ⅲ. A variety of modes can be selected for first pulse suppression, and the production effect is more ideal.

Ⅳ. Using high-speed scanning galvanometer system, the marking efficiency is faster.

Product technical parameters (Parameter):

Model	KL-UV-3W	KL-UV-5W	KL-UV-8W
Laser wavelength (nm)	355	355	355
Laser power (W)	3W	5W	8W
Pulse width (ns)	13-80	13-80	13-80
Power stability (rms)	<± 2%	<± 2%	<± 2%
Beam Quality	TEM00	TEM00	TEM00
Repetition frequency (KHz)	1-200	1-200	1-200
Beam diameter (mm)	< 0.6	< 0.6	< 0.6
Beam launch angle (mrad)	< 2	< 2	< 2
Humidity/Temperature	≤75%/ 10~75℃	≤75%/ 10~75℃	≤75%/ 10~75℃
Working environment	Dust free or as little dust as possible	Dust free or as little dust as possible	Dust free or as little dust as possible
Graphic formats supported	BMP . JPG GIF . DXF .AI .PLT	BMP . JPG GIF . DXF .AI .PLT	BMP . JPG GIF . DXF .AI .PLT
Cooling method	Built-in air cooling	High Precision water cooling control	High Precision water cooling control
Equipment power consumption	0.5KV	0.6KV	1KV
Power requirements	AC220V±10% 50Hz/60Hz	AC220V±10% 50Hz/60Hz	AC220V±10% 50Hz/60Hz
