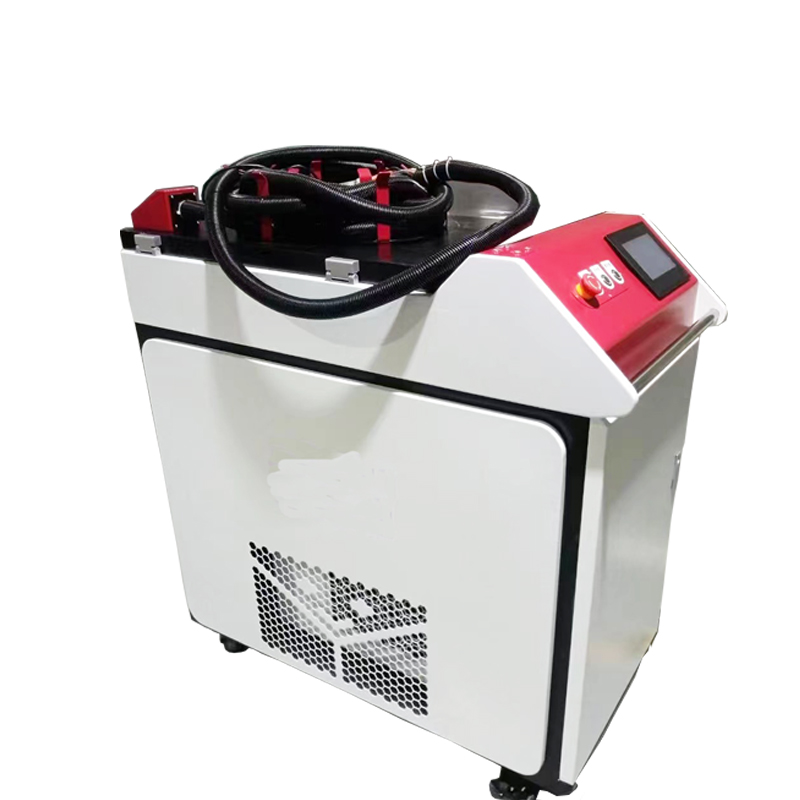

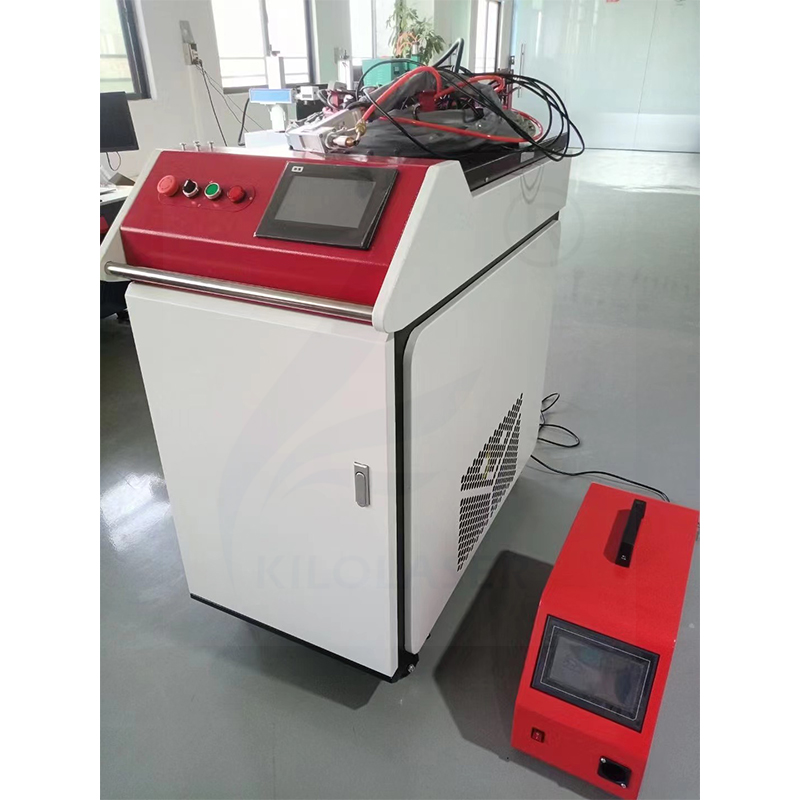

Name:Handheld fiber laser welding machine 1000w 1500w 2000w 3000w
Model:KL-HMF2000W
Laser wavelength:1080nm
Range of the adjutable Power:10-100
Laser Quality:2.8m²
Welding Mode:point, circle, one character, eight character, reverse character
Repeat frequency:1000KHz
Fiber Cable Length:10-15 meters
Output fiber core diameter:50μ
Host size:1170mm1250mm580mm
Argon:1 way
cooling method:Built-in chiller
Power requirements:AC220V±15 50Hz/60Hz
Rated power:6.5KW
Inquiry

Product Description

Kilolaser Handheld laser welding machine is mainly used for inner and outer right angle, flat welding and seam welding.The handheld laser welder is a new, more flexible welding process for welding small, medium and large work pieces.


Technique Parameter
ModelKL-HMF1000W KL-HMF1500W KL-HMF2000W KL-HMF3000W
Laer power1000w/1500w/2000w/3000w optional
Laer wavelength1080nm
Range of the adjutable Power10-100%
Laser Quality2.8m²
Welding Modepoint, circle, one character, eight character, reverse character
Repeat frequency1000KHz
Fiber Cable Length10-15 meters
Output fiber core diameter50μ
Host size1170mm*1250mm*580mm
Argon
1 way
cooling method
Built-in chiller
Chiller size
560mm*840mm*600mm
Power requirementsAC220V±15% 50Hz/60Hz
Working Temperature10-40
Working Humidity90% non-condensing
Rated power
6.5KW
Equipment size1080*660*1060 (length-width-height ratio)


Main advantages:

◆ Welding process: seam width adjustable, automatic wire feeding welding.

◆ 5-10 times faster than traditional welding and argon arc welding processes.

◆ The welding seam is beautiful, no deformation, no blackening, and no grinding is required.

◆ Welding outdoors, mobile on casters.

◆ Long distance welding: 15 meters, welding at any angle/shape.

◆ Ordinary people can weld beautiful workpieces without the need for professional welders.

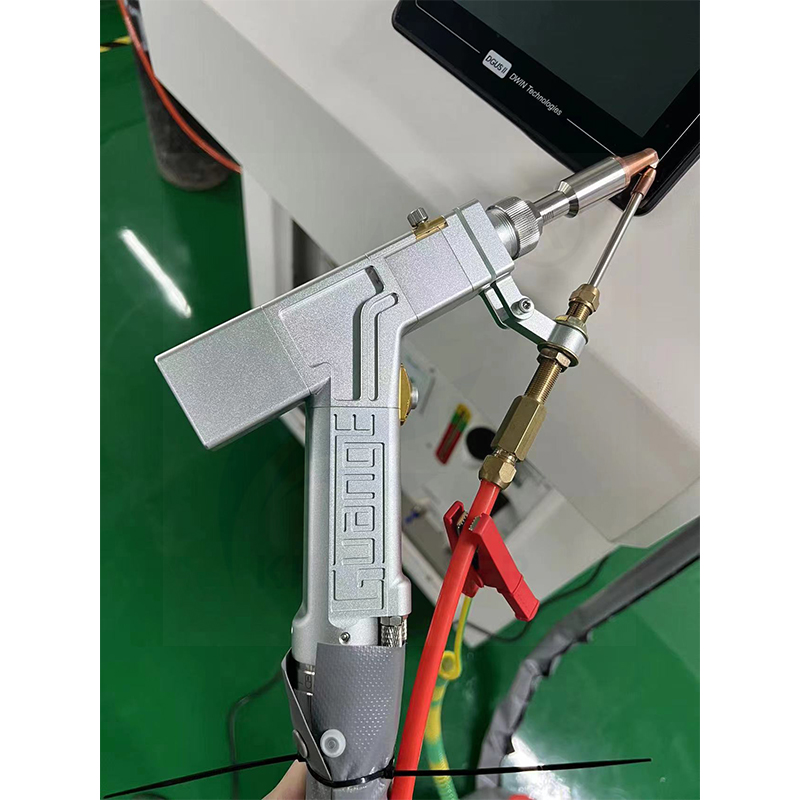

◆ The operation mode of the hand-held welding gun can realize the welding of any part and any angle of the workpiece;

◆ Ergonomic design, small size, light weight, flexible and convenient operation;operating

◆ Select the material of the welding tip to avoid scratching the surface of the workpiece;

◆  A variety of welding tips are available to easily realize the welding operation of different products;

◆  Equipped with a safety circuit to avoid accidental light emission and safer operation;

◆The hand-held welding head can choose the switch button to emit light, or use the foot pedal to trigger the light;

◆Suitable for welding small batches of multi-angle sheet metal hardware;

◆Wear protective glasses or a protective mask when welding.


Fiber welding machine samples.jpg

Applications:

Widely used in Spot welding stainless steel, carbon steel, galvanized sheet and other metals.
