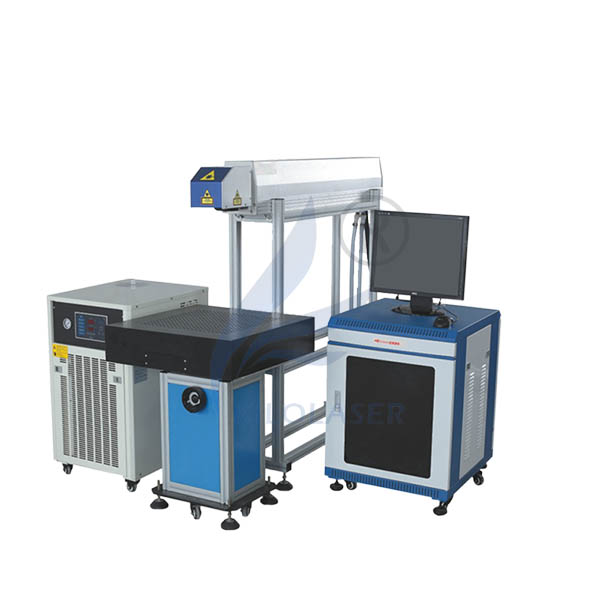

 KL-Co2 3-axis dynamic focus laser marking machine

I. Product introduction and usage Application

This Co2 3-axis dynamic focus laser marking machine adopts imported American radio frequency excitation carbon dioxide laser, which has the characteristics of good beam quality, stable power and long life. Using front focus technology The dynamic focusing makes the focused spot finer, faster, and more effective, suitable for large-scale marking or cutting. The system is equipped with a closed exhaust system, which is the smoke and dust generated during the working process It can be exhausted to the outdoors as much as possible without polluting the indoor air, ensuring the health of the operators. I This system adopts a modular structure, which is convenient for maintenance: the light path is fully sealed design, and the performance is stable, so that Long service life, no consumables in the working process, saving cost. Suitable for large-scale circular marking on leather, wood products, clothes and fabrics, large-format leather upper marking and cutting, and large-format wood panels Circular marks on handicrafts, and marking and cutting of other non-metallic materials. Olive pit carving Two-color plate portrait engraving Wallet carving s648 Binskin Crystal Carving Xiangjing Incense, RATSAK Golden Lake Hotel ABS engraving Ceramic carving .

II. Co2 laser marking machine structure and performance characteristics

1,The most advanced 3-axis dynamic focusing technology is adopted to break through the limitation of traditional laser processing. The processing range can be adjusted arbitrarily and the spot size can be adjusted.

2. Fully enclosed maintenance-free laser optical system to ensure that the optical system is not polluted by dust; strict multiple protection and control design to ensure the overall stability and reliability of the equipment.

3. Optimized design of optical path, better optical quality, dynamic focusing function, users can adjust the distance between moving lens and focusing lens through this function to realize different marking planes Switch, ranging from 50mm x 50mm to 600mm x 600mm marking format.

4. The marking software adopts USB interface bus, which is powerful, compatible with Coreldraw, AutoCAD, Photoshop and other software files, and supports PLT, PCX DXF, BMP, etc., can directly use SHX, TTF font; support automatic encoding, printing serial number, batch number, date, bar code, two-dimensional code, automatic number skipping, etc.

III, the main technical parameters of KL-Co2 3-axis dynamic focus laser marking machine

Model CO2-3axis100 CO2-3axis150

Average output power 100W 1 50W

Laser wavelength 10.6um

Laser repetition rate 1-20kHz

Engraving depth ≤8 ≤12

Engraving range 0-600mm

Maximum speed limit s7000mm/s

Minimum character 1mm 2mm

Minimum width 0.1mm 0.2mm

Repeat accuracy +0.005mm

Power supply 220V/50-60Hz

Power consumption 4000W 5000W

cooling method Circulating water cooling

IV .Standard configuration

1. Panel motherboard, standard integrated power supply

2 Whole machine (computer, host)

3 Operation manual and system operation manual
