Name:Automatic feeding laser cutting machine KL-1812AT
Machine Model:KL-1610AM KL-1612AM KL-1810AM KL-1812AM KL-1814AM
Cutting Area:1600x1000mm 1600x1200mm 1800x1000mm 1800x1400mm
Laser Power:80w 100w 120w 130w 150w
Cooking Type:Water cooling
Moving System:High Speed Servo Motor
Engraving Speed:0-64000mm
Cutting Speed:0-36000mm
Inquiry

Product Description

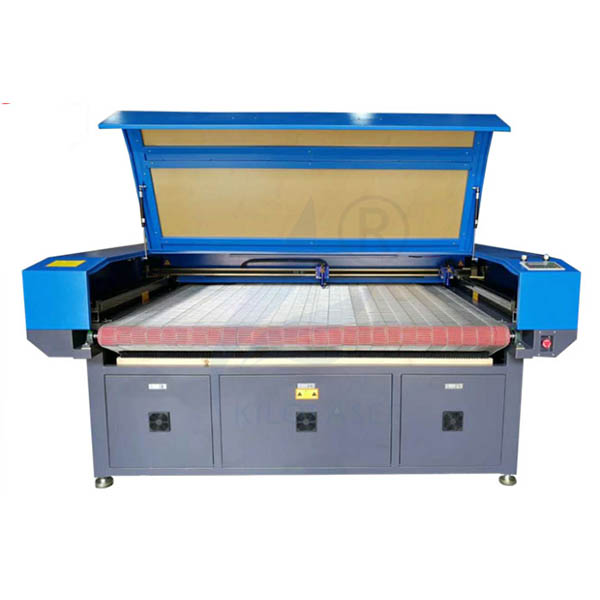

 Automatic feeding laser cutting machine KL-1812AM


Advantage Features


1,With intergrated feeding system,non-pulling system,suitable for multi-material automatic feeding : Such as knitted material ,cloth ,leather ,foal (multi-laser feeding).softare can be automatically calbulate the feeding length according to the typesetting ,can be done in the previous version and the next version is seamlessly combined to do help for save the material .

2,Compared with the common arravy version ,this typesetting function is more reabonable in layout ,easy for operation ,and more conductive to material saving .

3,It can be odd typesetting ,trim cutting (Saving material typesetting ).split feeding cutting (infinite long feeding )

4,Laser Power optional,Intergrated feeding system design ,optional camera positioing ,automatic matching double (optional).finished product standardzation ,projection preview positioning ,double head interaction (odd typesetting )


Technique Parameters:

Machine ModelKL-1610AM KL-1612AM KL-1810AM KL-1812AM KL-1814AM
Cutting Area 1600x1000mm  1600x1200mm 1800x1000mm 1800x1400mm
Laser Power
80w 100w 120w 130w 150w
Cooking TypeWater cooling
Moving SystemHigh Speed Servo Motor
Engraving Speed 0-64000mm
Cutting Speed0-36000mm
Cutting Energy Controlling
Can be Fine-Turned
Cutting Speed ControllingCan be Fine-Turned
Power Supply220V  ,50HZ/60Hz



Applicate material :

Cloth ,leather ,paper products ,woode products,acrylic ,plexiglass products,rubber ,synthetic material etc


Applicate industry

Suitable for garmets,cloth ,leather products,packaging and printing ,decoration ,paper and many other industries.

Samples series.jpg


More Detail Video and Technique information please contact  Cell/Whatsapp/Skype:+8618028969996 Email: info@kilolaser.com Web: www.kilolaser.com
