Name:KL-1325C Flat Bed Textile Laser Cutting Machine
Inquiry

Product Description

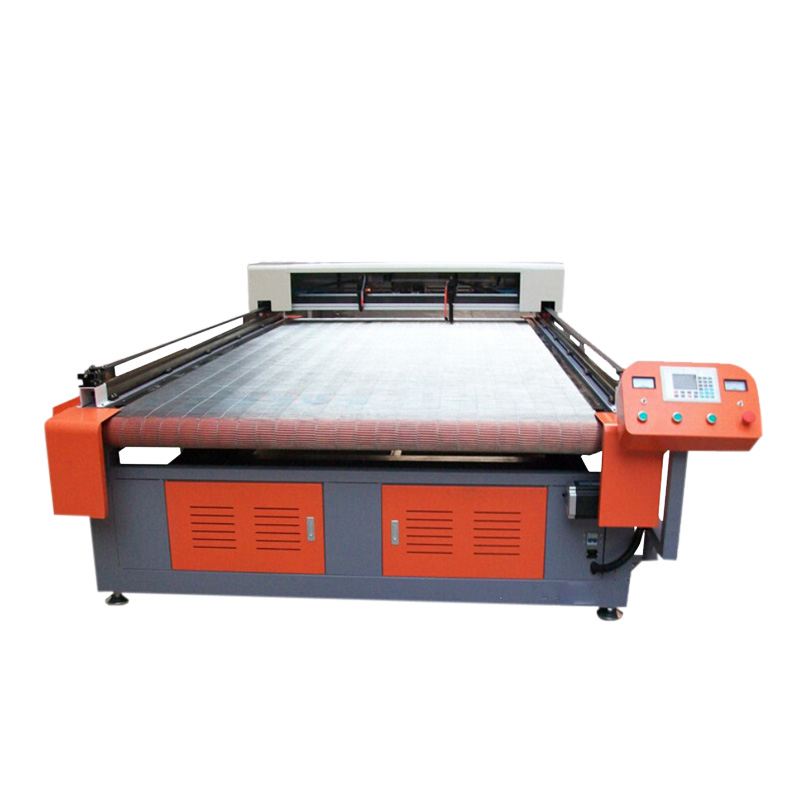

KL-1325C Flat Bed Textile Laser Cutting Machine


 I. Product introduction

The KL-1325C Flat Bed Textile Laser Cutting Machine system is equipped with imported stepper motors and Taiwan imported high-precision linear guides. It selects laser tubes suitable for different powers of customers. It is cost-effective and will Significantly improve the efficiency of customers' automated production sites and production, and meet the processing methods and new operation methods of new products in various industries. Make large-format laser cutting no longer difficult. suitable Used in clothing, fabrics, leather goods, packaging and printing, decoration, products and other industries. Kilo Laser specializes in providing you with stand-alone industrial laser solutions. kilolaser professional to provide you Two-stop industrial laser solution.


II. KL-2513C Flat Bed Textile Laser Cutting Machine structure and performance characteristics

1. The frame adopts a thickened steel pipe welded frame structure, and the sheet metal outer cover is a mixed equipment, which has high strength and good stability. It effectively reduces the center of gravity of the whole machine and improves the stability of the whole machine during operation. Improve movement accuracy and cutting effect.

2.Using B-shaped or herringbone mesh belt, the mesh belt is made of stainless steel, with stable structure, no deformation, no rust, no break, no deviation, and good flatness.

3. Fully support CAD, CORELDRAW, Tianniao and other design software, friendly man-machine interface, close to the needs of the industry site.

4. The realization of fast continuous curve cutting function is due to the powerful data processing ability of high-end DSP technology, and the targeted design of precision mechanical system by computer software-meticulous matching In the case of high-speed operation, the cutting straight line is not deformed, and the cutting curve is not distorted.

5. Adopt brand-new electrical design scheme and electrical components with excellent performance to ensure the stable operation of the system. The components are sturdy, durable and reduce the electrical failure rate.


 III. The main technical parameters of KL-1325C Flat Bed Textile Laser Cutting Machine

Model: KL-1325C  KL-1630C KL-1825C KL-1830C KL-1835

Laser type :Domestic sealed off Co2 laser tube

Laser power 80W-150W optional

 Cooling method:  Water-cooled Drive System Stepping motor

 Cutting area 1300*2500 1600*3000 1800*2500 1800*3000 1800*3500

 Engraving speed 0-64mn/min Cutting speed 0- -3600mun/min

 Camera extraction function Standard device

 Power supply 220V/50-60HZ 10A

 Environmental requirements :Temperature 15C-35C Humidity 30%-80% (no condensation)


 Ⅳ, standard configuration and matching

1 panel motherboard, standard integrated power supply

2. Standard configuration Serei drive motor

3.XY optical axis, eccentric wheel, bearing

4.Laser power supply, coupling

5. Rocker switch, round button switch, knob

6.Fan net, straight-through connector, elbow

7. Potentiometer, ammeter, scale piece

8. Hardware, drag chains, belts

9. Water protection, limit switch

10. Guide wheel screw

11. Reflector, focusing mirror

12. Laser tube, magnet, lamp and other installed accessories

13. Convenience manual and system operation manual


 V, KL-1325C Flat Bed Textile Laser Cutting Machine picture detail display servo motor Linear Guides Whole machine control system

 Ⅵ. KL-1325C Flat Bed Textile Laser Cutting Machine Here is a video or other content you want to show


 Ⅶ. Quality assurance measures and debugging training

 1. The machine tool will be counted from the end of the final acceptance-three guarantees will be implemented during the year, and lifetime maintenance and technical support will be provided. If there is a problem with the machine tool in the second phase, the telephone answer is given within 24 hours.

 2. If the machine tool fails during the warranty period, the user will be free to replace the spare parts and repair the repair beyond the warranty period. If you need to replace the spare parts, you will be charged a door-to-door fee, and promptly provide the user. For effective service.

 3. Free installation and commissioning and operator training online support for users.  for free operation training and simple maintenance training.
