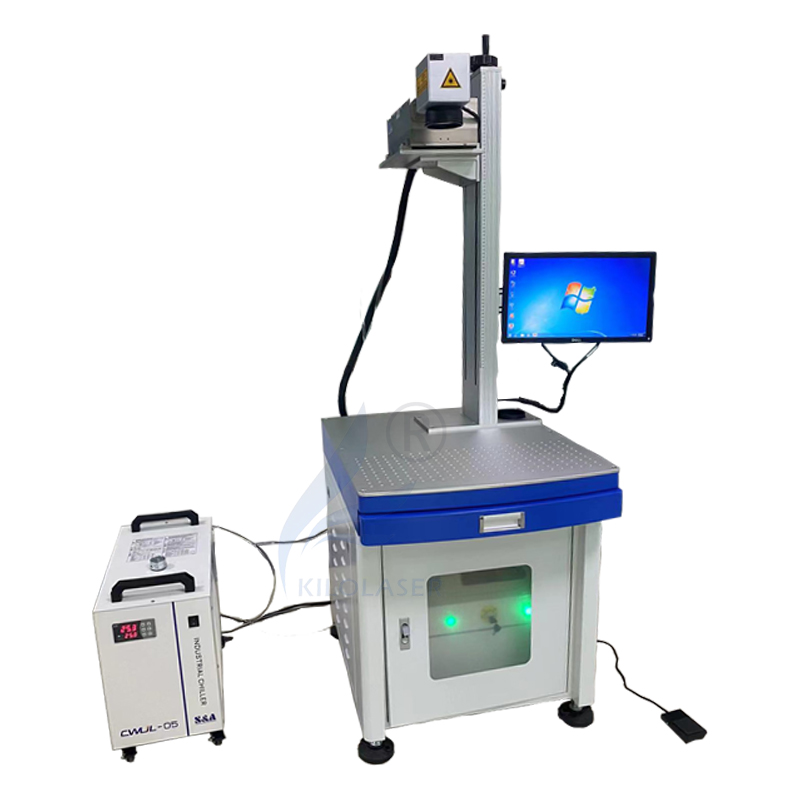

Name:UV Laser Marking Machine For Glass ABS Plastic Nonmetal Material
Laser wavelength (nm):355
Laser power (W):3W/5W/8W
Pulse width (ns):13-80
Power stability (rms):± 2
Repetition frequency (KHz):1-200
Beam diameter (mm):0.6
Inquiry

Product Description

UV Laser Marking Machine For Glass ABS Plastic Nonmetal Material


Advantages:

Ⅰ. Introduce all air-cooled solid-state laser devices, adopt precise temperature control PID algorithm, and have good stability.

Ⅱ.More fine spot quality, small heat affected area.

Ⅲ. A variety of modes can be selected for first pulse suppression, and the production effect is more ideal.

Ⅳ. Using high-speed scanning galvanometer system, the marking efficiency is faster.


Product technical parameters (Parameter):

Model  KL-UV-3W KL-UV-5W KL-UV-8W
Laser wavelength (nm)    355   355   355
Laser power (W)  3W   5W   8W
Pulse width (ns) 13-8013-8013-80
Power stability (rms) <± 2%<± 2%<± 2%
Beam Quality TEM00TEM00TEM00
Repetition frequency (KHz)1-2001-2001-200
Beam diameter (mm)< 0.6< 0.6< 0.6
Beam launch angle (mrad) < 2 < 2 < 2
Humidity/Temperature ≤75%/ 10~75℃≤75%/ 10~75℃≤75%/ 10~75℃
Working environmentDust free or as little dust as possibleDust free or as little dust as possibleDust free or as little dust as possible
Graphic formats supported BMP . JPG GIF . DXF .AI .PLT BMP . JPG GIF . DXF .AI .PLT BMP . JPG GIF . DXF .AI .PLT
Cooling method Built-in air cooling High Precision water cooling control  High Precision water cooling control
Equipment power consumption 0.5KV 0.6KV1KV
Power requirementsAC220V±10% 50Hz/60Hz AC220V±10% 50Hz/60Hz AC220V±10% 50Hz/60Hz


Application:

Widley used in

Plastic: Surface Marking Scribing Barcode

Glass: Surface Marking Deep Engraving

PCB: QR Code Marking Punching Scribing

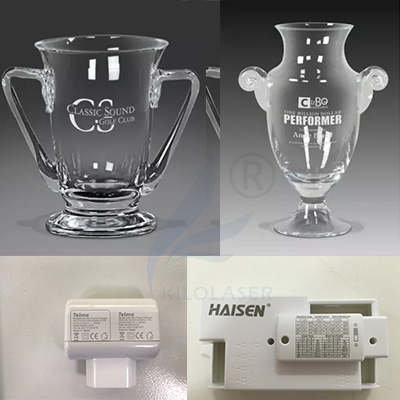

Samples:

Samples UV Laser Marking.jpg
