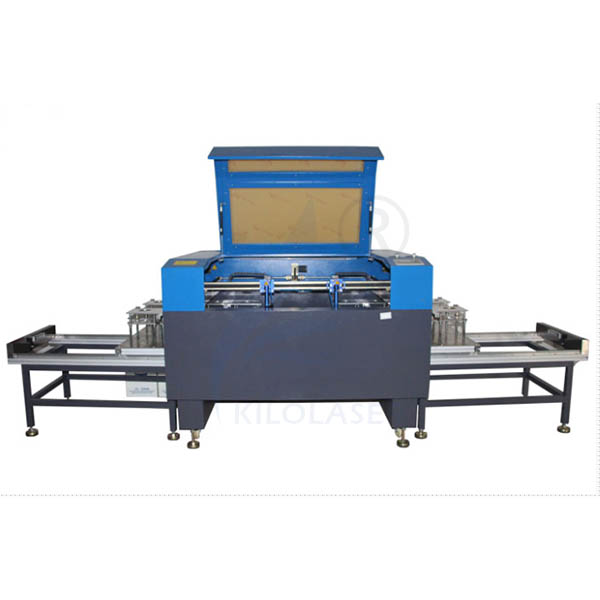

Easy Open Coconut Laser Cutting Machine

I. Product introduction

Easy Open  coconut laser cutting machine  is Kilolaser's new product. Laser processing is the use of invisible light instead of the traditional mechanical knife, and the high-energy laser is projected to the coconut Sub-shell surface, and produce thermal effect to evaporate to form slits or patterns. Coconut laser cutting machine integrates cutting, perforating and engraving functions, and can easily complete the circle through software With heart-shaped cutting and various LOGO characters engraving, the processing precision is high and the speed is fast. And the biggest advantage of laser processing coconut is that it will not affect the food in the coconut shell. Produce any impact on life and taste, the depth of processing can be automatically adjusted by the software, and the graphics are not limited.

 II, Advantage Features

1.Adopting international advanced controller, performance is greatly improved, stable S-type acceleration and deceleration control software design, fast and stable action, with automatic light decay compensation Compensation technology enables different cutting positions to achieve ideal results.

2. Adopting the internal and external combined guide rail drive system, under the condition of ensuring the stability, the guide rail system structure is lighter and the machine processing speed is improved.

3. The use of imported stepping motor, combined with imported belt drive and guide rail structure, makes the entire laser processing speed and accuracy performance greatly improved.

4. The electrical components are all imported brands and standardized industrial wiring, which is different from the messy wire arranging boxes of small manufacturers, and has stronger anti-electrical interference ability.

5. The original imported lens is adopted, which has stronger light transmission, less heat loss, and greatly improves the cutting effect.

6. Support jog function, support continuous engraving after power off, work preview function, support dynamic display of processing trajectory and coordinate points, real-time display and follow-up of processing progress trace.

III. Technical parameters of coconut laser cutting machine machine

Model:KL-640Coco KL-960Coco KL-1080Coco KL-1090Coco

Working area :2 positions ,4 positions ,8positions ,16 positions

Laser head :Single head, double head, three head, four head (optional)

Laser type: Domestic sealed Co2 laser tube

Laser power :80W-150W optional

Cooling method :Water-cooled

Drive System :Stepping motor

Engraving speed: 0-64mm/min

Cutting speed 0-3600mm/ min

Power electricity Supply: 220V/50-60HZ 1

Environmental requirements:Temperature 15C-35  Humidity 30%-80% (no condensation)

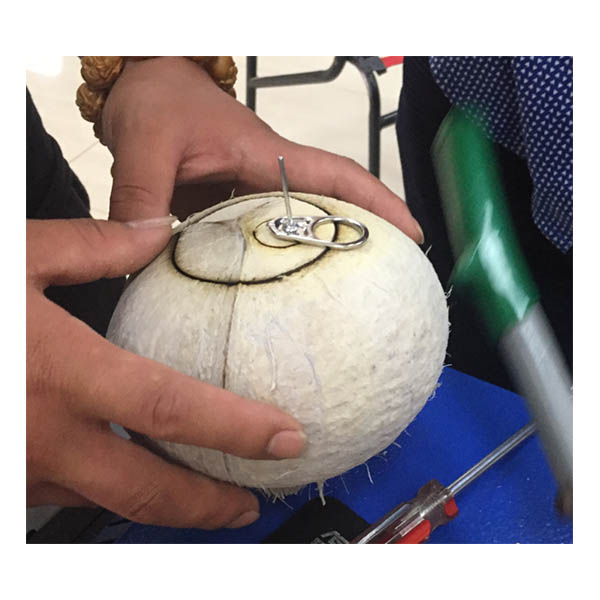

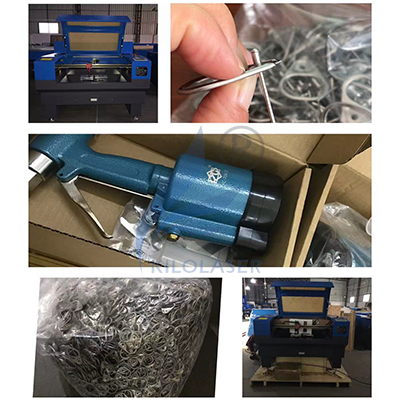

Samples:
