Name: | Jewelry Laser Spot Welding Machine KL-100JW KL-200JW |
---|---|
Model:: | KL-100JW KL-150JW KL-200JW |
Laser Type:: | Nd:YAG Laser |
Laser Wavelength:: | 1064nm |
Laser Power:: | 100w/150w/200w (Customizable) |
Max Puls Energy:: | 0.1-0.6mm |
Welding Depth:: | 2mm (As Per Exact Material) |
Laser Output Focus Length: | 80/100/120mm |
Inquiry |

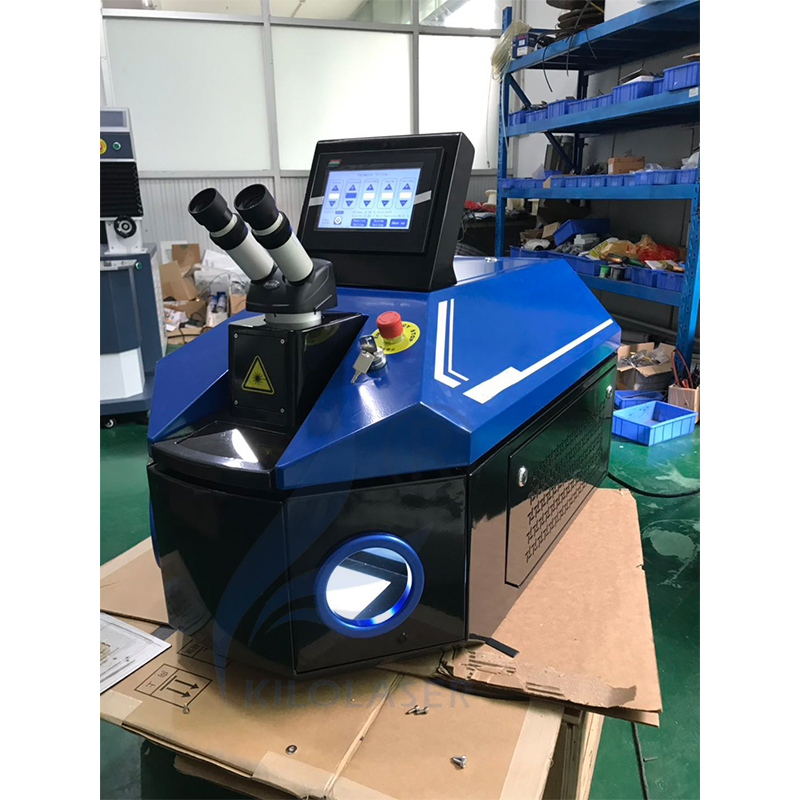

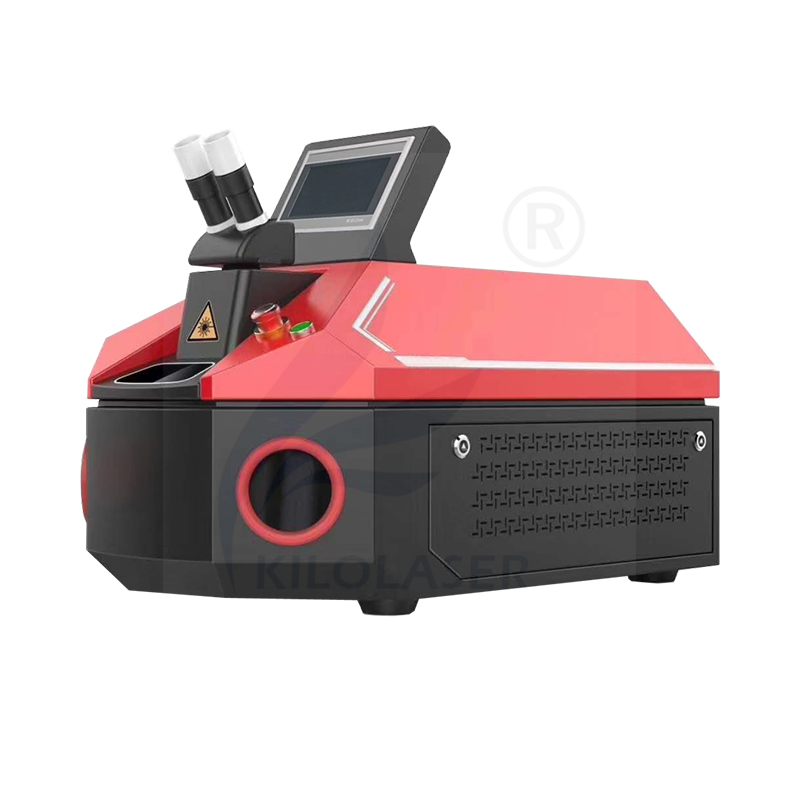

Jewelry Repair Laser Spot Welding Machine KL-200JW
Product Introduction
Mainly used for filling holes, spot welding and repairing of gold and silver jewelry, suitable for multiple metals and alloy materials such as gold, silver, platinum, stainless steel, titanium, etc., and can also be used for artificial teeth repairing and small precision devices such as battery nickel Welding of belts, integrated circuit leads, watch hairsprings, picture tubes, electron gun assembly and other fields.
Advantage Features:
● Adopt imported ceramic concentrating cavity with fine solder joints and good uniformity. Good concentrating, high photoelectric conversion rate, can effectively guarantee the stability of laser intensity
● With a manual rocker to adjust the spot size, easy to use.
● Laser power supply independently developed and designed with higher single point pulse energy. Fast processing speed, long-term output without attenuation, and high efficiency. The wiring is simple and reasonable, and the anti-interference energy is strong.

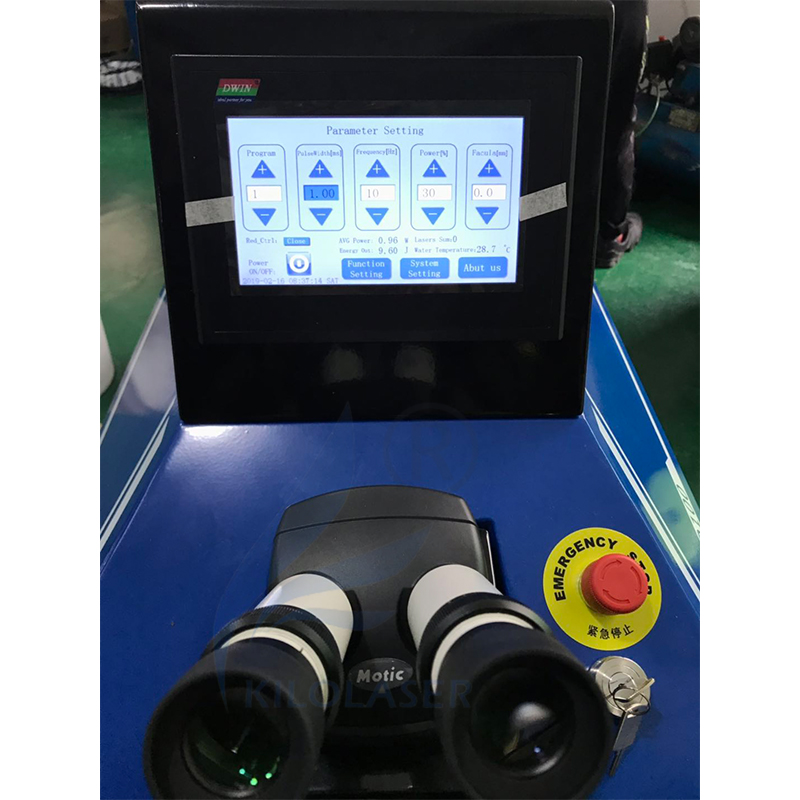

● Adopt Audi Brand microscope, 10X magnification, HD line, easy to observe, more convenient welding operation, better processing effect.
● Use the digital control system, capacitive touch screen, more sensitive than traditional screen, user-friendly parameter interface, intuitive display, easy to operate.
● The cabinet design is more Humanize, long-term work with less fatigue
Technique Parameter:
Model: | KL-100JW KL-150JW KL-200JW |
Laser Type: | Nd:YAG Laser |
Laser Wavelength: | 1064nm |
Laser Power: | 100w/150w/200w (Customizable) |
Max Puls Energy: | 0.1-0.6mm |
Welding Depth: | 2mm (As Per Exact Material) |
Laser Output Focus Length | 80/100/120mm |
Puls Frequncy: | ≤30Hz |
Puls Width: | ≤15ms |
Spot Adjustable Area: | 0.1-3mm |
Position Method: | Red Light,CCD Monitor, Microscope (Optional) |
Position Precision: | 0.2mm |
Operate Table | DSP/PLC |
Auxiliary Gas: | Argon (1 way) |
Cooling Type: | High Force Water Cooling |
Power Supply : | AC380V士5%50Hz/60Hz |
Power Consumption: | 5.5KW |
Application:
It is widely used in precision casting welding of small hardware composed of various metal materials, such as: jewelry, dentures, clocks and watches, medical treatment, instrumentation, electronics, mechanical mold processing, automotive and other industries. It is especially suitable for filling holes in gold and silver jewelry. Welding of sand holes, repair seams and claw feet of inlaid parts.
