| Name: | Fiber Optic transmission Laser Automatic welding machine KL-ZMT500W |
|---|---|
| Model: | KL-ZMT1500W |
| Laser wavelength: | 1064nm |
| Laser power: | 500W(1000w,1500w,2000w,2500w,3000w )optional |
| Maximum pulse energy: | 70J |
| Maximum peak power: | 4KV |
| Pulse frequency: | ≤50Hz |
| Energy volatility: | 6 |
| Positioning method: | Laser diode red light indication (CCD) |
| Protective gas Argon: | 1 channel |
| Laser Type: | YAG |
| Inquiry |
Product Description
Optical fiber Laser YAG Automatic welding machine KL-ZMT500W
Product features :
Ⅰ Positioning programming can be realized on the PC interface, no need to write code, and the operation is simple and easy to learn.
Ⅱ The high aspect ratio is fused, the weld edge is deep and narrow, the protect gas can trace the welding, the weld effect is bright and beautiful.
Ⅲ High power density, extremely fast melting process, low heat input to the workpiece, fast welding speed, small thermal deformation, and small heat affected area.
Ⅳ High density, during the welding process, the molten pool is continuously generated, the gas overflows, and the non-porous penetration weld is formed. After welding, the high cooling rate is easy to make the microstructure of the weld bead
Weld strength, toughness and high comprehensive performance.
Ⅴ Strong welds . The high temperature heat source and the full absorption of non-metallic tissue components produce purification, reduce the impurity content, changed the size of inclusions and other distributions in the molten pool, no electrodes or filler wires are required during the welding process, and the melting area is less polluted, making welding Seam strength. Toughness equal to or exceeds parent metal.
Technical Parameters:
| Model | KL-ZMT500W |
| Laser wavelength | 1064nm |
| Laser Type | YAG |
| Laser power | 500W(1000w,1500w,2000w,2500w,3000w )optional |
| Maximum pulse energy | 70J |
| Maximum peak power | 4KV |
| Pulse frequency | ≤50Hz |
| Pulse width | ≤20ms |
| Light spot adjustment range | 0.1-0.5mm |
| Energy volatility | <6% |
| Positioning method | Laser diode red light indication (CCD) |
| Working environment : | Dust free or as little dust as possible |
| Protective gas Argon | 1 channel |
| Cooling method | External water cooling |
| Power requirements | AC220V±10% 50Hz/60Hz |
| Device size | 1680mm*850mm*1350mm |

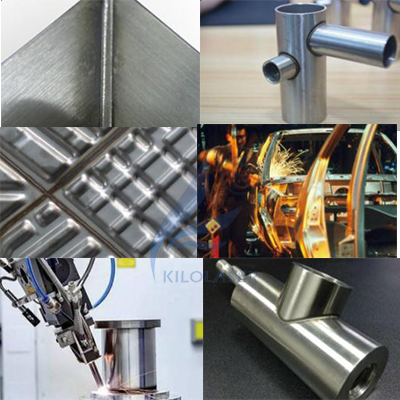

Usage Application :
Metal: Stainless Steel Aluminum Copper Nickel Titanium Chromium
Alloys: Copper-Titanium Nickel-Copper Stainless Steel-Copper Stainless Steel-Nickel.
Product customization information:
Our factory avaliable to Customized the machine models as per customers exact products samples and production requirements. We can propose our high-quality solutions according to customer requirements.
Optional Customization functions:
1. Power range: According to the actual power requirements of the product, a variety of power supply specifications can be formulated.
2. Wroking range: The standard XY working area of the worktable is 300*200mm, and various working area can be made according to product specifications.
More Video display and Technique Details Please contact Whatsapp:+8618028969996 or email us by info@kilolaser.com
